Jiangsu Qianjing Medical Equipment Co.,Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Qianjing |
| Certification: | CE, ISO13485 |
| Model Number: | QWZD |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | CARTON |
| Payment Terms: | T/T, L/C, D/A, Western Union |
| Supply Ability: | 3000 PCS Per Month |
| Medical Device Regulatory Type: | Type 2 | Shelf Life: | Three Years |
|---|---|---|---|
| Properties: | Anorectal,Urology Surgery Equipments | Sterile: | Radiation |
| Tissue Retaining Pin: | Eliminates Tissue Slippage | Usage: | Surgical Suture |
| High Light: | endo linear cutter stapler,linear stapler surgical |
||
Surgical Instruments Medical Disposable Linear Cutter Stapler for Surgery
Removable assembly
1. Usage of removable assembly of disposable linear cutter stapler and cartridge.
2. Be sure that the ejector pad returns to its original position, and then pull the free handle cover open to remove the used assembly and replace it with a new one; put the new assembly in the assembly holder and fix it, and then remove the cover; the assembly can be used in the same operation according to the usage.
Contraindication
1. Serious mucous edema.
2. Never use the stapler with staple height of 4.5mm for any tissue whose compressed thickness is less than 2.0mm, because the stapler staple cannot fully tighten up to stop bleeding in this case.
3. Never use the stapler with staple height of 4.5mm for any tissue which fails to be compressed easily to be 2.0mm thick, because the tissue thickness is beyond the suturing specification in this case.
4. Never use the stapler with staple height of 3.85mm for any tissue whose compressed thickness is less than 1.5mm, because the stapler staple cannot fully tighten up to stop bleeding in this case.
5. Never use the stapler with staple height of 3.85mm for any tissue which fails to be compressed easily to be 1.5mm thick, because the tissue thickness is beyond the suturing specification in this case.
6. Never use the instrument for any tissue whose compressed thickness is less than 1mm, because the stapler staple cannot fully tighten up to stop bleeding in this case.
7. The instrument shall not be used for livers or spleens, because closing the instrument may cause destructive effect due to their compression characteristics.
Specification
| Specification | Cartridge specification | Suturing Length (mm) | Staple Quantity (pcs) | Staple Height (mm) | Cartridge Color |
| QYQ-55A | QD-55A | 57 | 56 | 3.85 | Blue |
| QYQ-55B | QD-55B | 4.2 | Gold | ||
| QYQ-55C | QD-55C | 4.5 | Green | ||
| QYQ-75A | QD-75A | 77 | 76 | 3.85 | Blue |
| QYQ-75B | QD-75B | 4.2 | Gold | ||
| QYQ-75C | QD-75C | 4.5 | Green | ||
| QYQ-100A | QD-100A | 102 | 100 | 3.85 | Blue |
| QYQ-100B | QD-100B | 4.2 | Gold | ||
| QYQ-100C | QD-100C | 4.5 | Green |

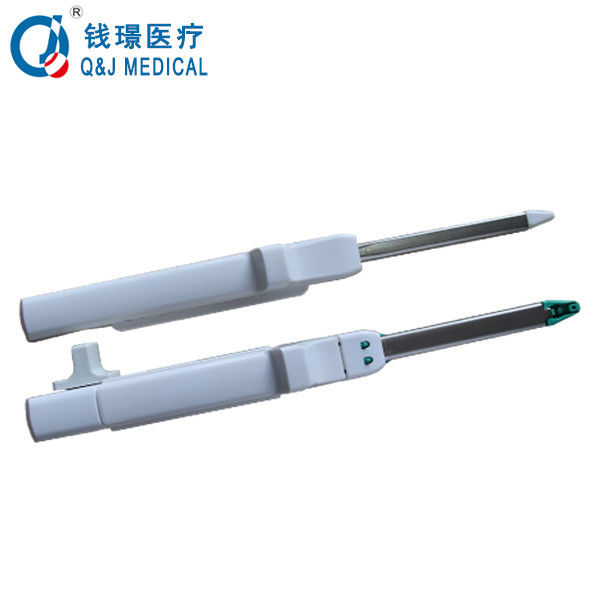

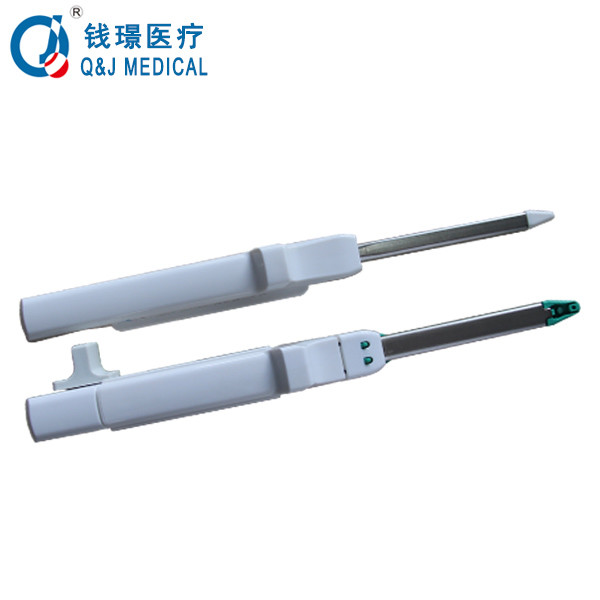

Product Photoes
